TEMP CON TYPE J 110V FAR

Home | Temperature Alarms and Controls | Buy This Product Online

[ TEMP CON TYPE J 110V FAR - SUP ]

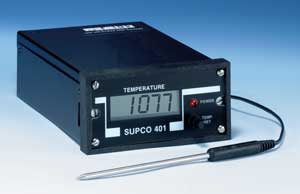

TEMP CON TYPE J 110V FAR
Product Code: SUP-401JF
Price: Check Latest

401 DIGITAL SET POINT 110 Volt Fahrenheit
TEMPERATURE CONTROLLER
FEATURES
. LCD display of the set point and sensor temperatures
. Includes 15 ft. of Type J thermocouple wire with a 4 inch long stainless
steel sensor
. 10 Amp Relay Contacts allow connection of large loads without need
of additional contactor
. All connections made from rear terminal strip for easy connection of
sensor, load, and power
. Provides a clean front panel appearance
. Front Panel LED indicates when relay is energized
. User selectable to energize relay on rise or fall of temperature
. Refrigeration temperature control . Temperature alarm
. Temperature indication . Furnace temperature control

SPECIFICATIONS
Sensor Thermocouple Type J included
Scale 0° to +1200°F or -20°C to +1100°C
Display 3/8" (10mm) LCD
Accuracy +/- 1%FS
Adjustable differential 1° to 25° Centered around set point
Control mode ON-OFF
Maximum load current 10 Amp, 250 VAC Resistive SPDT Relay
Power Consumption 2 VAC
Supply voltage 120 VAC or 220 VAC, 50/60Hz.
Operating temperature +32°F to +140°F (0° to +60°C)
Panel mounting 3 5/8" x 1 13/16" Cut-out (92mm x 45mm)
