WALL THERMOSTAT MULTI STAGE AUTO

WALL THERMOSTAT MULTI STAGE AUTO

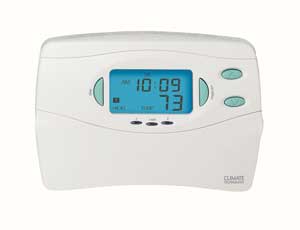

Product Code: SUP-43058 Price: Check Latest 43058 For Multi-Stage Heat Pump/Conventional Two-Stage Heat/Cool Thermostat With Auto Season Changeover All CTC Digital and Programmable Thermostats Have These Specifications: • 20-30 VAC, 50/60 Hz • Current draws 0.1 to 1.5 amps • Temperature set range: 45° -95°F (7° -35°C) • Operating differential +/- 1° F • Compressor protection: 4 min. delay on break Are Compatible With: • 24 VAC heat/cool, heat only or cool only systems • Gas, electric or oil systems • Millivolt systems • 2-wire hydronic systems (Not for use with 110/220V systems) Feature: • Latching relays for system compatibility • Soft touch keypad • Low battery indicator • INDIGLO® Backlight • Easy, front load battery access • 2 AA batteries included • F°/C° selector • 3-year warranty Additional Features: • Energy Monitor • Filter Monitor • No programming required • “System On” indicators • Keyboard lock • Auto heat recovery • AC powered with 2 AAA battery backup • Optional hardwire remote sensors (43658) Also Compatible With Most: • Two-stage heat pumps with 2 heat/2 cool • Two-stage heat pumps with 2 heat/1 cool • Single-stage heat pumps • Conventional two-stage heat/cool systems (Not for use with 110V/220V systems) • Multi-stage heat/cool Additional Specifications: • Display temperature limits: 40°-95°F • Terminations: R, Y1, Y2, W1, W2, E, O, B, G, L, C • Remote Sensor Terminations: RS1+, RS1-, RS2+, RS2-
