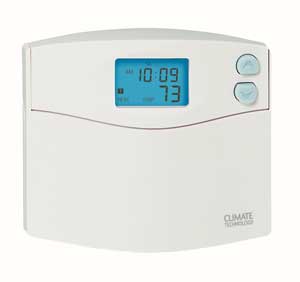

WALL THERMOSTAT 5DAY 1 DAY 1DAY PROG MULTI STAGE

WALL THERMOSTAT 5day 1 day 1day PROG MULTI STAGE

Product Code: SUP-43255 Price: Check Latest 43255 5 Day/1 Day/1 Day Programming, 4 Periods Per Day For Conventional Heat/Cool or Single Stage Heat Pump Systems All CTC Digital and Programmable Thermostats Have These Specifications: • 20-30 VAC, 50/60 Hz • Current draws 0.1 to 1.5 amps • Temperature set range: 45° -95°F (7° -35°C) • Operating differential +/- 1° F • Compressor protection: 4 min. delay on break Are Compatible With: • 24 VAC heat/cool, heat only or cool only systems • Gas, electric or oil systems • Millivolt systems • 2-wire hydronic systems (Not for use with 110/220V systems) Feature: • Latching relays for system compatibility • Soft touch keypad • Low battery indicator • INDIGLO® Backlight • Easy, front load battery access • 2 AA batteries included • F°/C° selector • 3-year warranty Additional Features: • Adjustable cycle rate • Pre-programmed • Easy “Front Load” battery access • Mechanical low temperature protection • Filter monitor • Up-opening door • Two-stage low battery warning with fail safe protection Also Compatible With Most: • Single-stage heat pumps Additional Specifications: • Terminations: G, RC, RH, Y/O, W/B, Y1
