VOLTAGE RECORDER Product Code: SUP-CR87V
Price: Check Latest

CR87V VOLTAGE RECORDER 110 V
. Advanced microcontroller design for reliability
. Large LED digital display for easy reading of
temperature
. All controls on front panel for fast and easy setup
. Single or continuous chart rotation
. Standard adapter for 120 VAC operation (220 VAC
optional)
. Battery backup assures normal operation during
power interruptions
. 12 Volt operation . Allows use in vehicular or
marine operations
. Furnished complete with 2 cartridge pens & 60
(6" diameter) assorted charts
. Convenient fold down carrying handle
. Snap-on extra support legs
. Free standing or wall mounted (using existing
keyhole slots located on back of the case)
. Weather proof NEMA type 4X (CSA type 4) case
optional

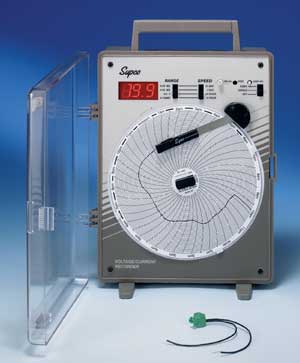

The CR87V is a precision instrument used to monitor and
record voltage or current on a 6. circular paper chart. The
CR87V may be carried as a portable instrument or
mounted in a fixed location.
The CR87V offers a variety of features to meet any
voltage or current recording requirements. A combination
of two voltage ranges and two current ranges combined
with four chart speeds provide a high degree of flexibility.
In addition, the chart rotation may be set for single or
continuous turn operation as required by a particular
application. To protect the data being recorded, the
CR87V uses an automatic battery backup to maintain
operation during a power outage.
